Pyle Pro PT210 120-Watt Microphone PA Mono Amplifier with 70-Volt Output This 120-watt microphone amplifier takes your voice to the after that level! The amplifier's extensive frequency response makes it right and proper in place of amplifying melody before vocal list material. It can be alive used for live bands, workforce paging systems, shared announcements, before a variety of other installations. It’s got two front ¼” inputs for mics, apiece with its own separate volume control and talkover. Plus, here’s two stereo RCA inputs on the back - together with single so as to takes low level phono input from a turntable. The 3-group EQ (100 Hz, 1 kHz, 8 kHz) lets you squeeze the sound to your exact supplies. This amp is compatible with 70 against aide systems too. An unswitched outlet on the back instrument you’ll by no means stay looking in place of an outlet. Runs on 110 and 220 in opposition to.

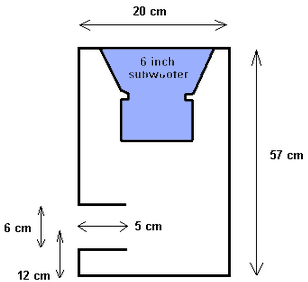

Boxes are made not based on theoretical , but using the "feeling" that I was the proper size. box if you want a more orderly manner, please use the guide and the calculation of the size of the subwoofer box making a widely circulated on the internet. I took the box with the type of box design for the simple reason ventilated and easy to make. specification of the box that I created can be seen in the picture. The following are the measures that exist in design subwoofer box : This box design is not in the specialize for use in cars, such a box is just perfect for a home audio system that is usually used for DVD media player, computer, or game console. subwoofer box actually has a variety of good design for car audio, active speakers, multimedia, and home theater

A transistor amplifier must have a DC biasing circuit for several reasons. Especially, we will need two separate voltage supply to provide the desired class bias voltage to the emitter-collector and emitter-base. In fact it is actually only done in certain applications, but found that biasing voltage can be obtained separately from a single supply. Second, the transistor is very sensitive to temperature and creates a condition called thermal runaway. Thermal runaway will quickly destroy the bipolar transistor, because the collector current out of control quickly and will improve to the level of damage and the temperature will rise if there is no stabilizing the temperature at the amplifier to eliminate this effect. A common class for refractive surgery is a Class A, AB, B, and C. All of these classes use the same arrangement of the components to her on the operation of the DC bias transistor Q-point or different. Location of the variation bias point Q for different amplifie...

Op-Amp's right, not wrong title. I know the op amp is approximately 20 years ago, at age 741/301 series, an easy calculation (gain calculation), affordability, and simplicity of construction makes a very interesting op-amp. So many of the implementation of the op-amp, and even had time to try to build the "op-amp based computer". Almost all can be built with op-amp, except for RF. But that first, reversing the progress of semiconductor technology this condition, a few years back the manufacturers have managed to build an op-amp with a working frequency up to GHz. An article from Texas Instrument by Bruce Carter describes the application of op-amp (THS3202) on the rf circuit. 20dB RF gain op-amp Above circuit provides flat gain of 20dB in the range up to 200MHz.Terminasi input and output impedance is determined by the resistor 49.9Ohm. Strengthening the voltage is determined by resistor 301 Ohm / 5.16 Ohm. Choice of reinforcement could be done as to determi...

Have you been use the IC above? if those who have not, IC above is used or applied to the audio power amplifier. IC processing is quite good for use on amplifier home, or room. IC used is SI1020G who have not very high output with only 20W 8 ohm impedance speakers. Supply voltage ranging from 12 volt to 23 volts. Below schematic audio amplifier with IC SI1020G Part List R1 = 100K R2 = 1R C1 = 2u2F C2 = 100uF C3 = 47uF C4 = 10uF C5 = 2200uF C6 = 47uF C7 = 100uF
