BTL Stereo Amplifier TDA7052 / 3

By -

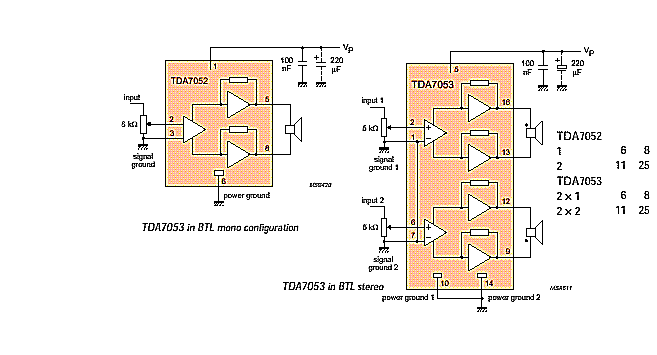

This is BTL stereo power amplifier with basic amplifier on IC TDA7052 / TDA7053

BTL Stereo Amplifier TDA7052 / 3

Comments

Post a Comment

Popular posts from this blog

OCL 150 Watt with 2N3055 and MJ2955

By -
This is OCL 150 W mono audio amplifier circuit , with impedance 8 Ohms. The supply voltage using 25 volt DC with triple voltage + ,- ,ground. see below this circuit : Buffer amplifier use PNP transistor is A564 / A733 /A1013 and NPN use D400 / D438. Driver Amplifier use NPN transistor is TIP31 / TIP41 / D401, and PNP transistor use TIP32 / TIP42 / B546. For the transistor booster or end , here I use a 2 x 20355 and MJ2955 . This anplifier is recomended to full range speakers. See pcb line and construction audio amplifier below : Click to view larger PCB line Components are already installed The booster amplifier already installed.
Read more

1500W Stereo Power Amplifier Schematic

By -
Circuit Power Amplifier has a power output of up to 1500W RMS power amplifier circuit is often used to power sound systems keperlun for outdor. In the final image can be seen a series of power amplifiers using 10 sets of power transistors for the ending. This power amplifier circuit using a transistor amplifier from the front, signal splitter, driver and power amplifier. Current consumption required is quite large power amplifier that is 15-20 A 1500W power amplifier circuits for this. Supply voltage needed by the power of this amplifier is the optimal working order symmetrical 130VDC (130VDC-130VDC ground). 1500W amplifier circuit below is a picture series of mono, stereo if you want to make it necessary to make two copies of the circuit. For more details can be viewed directly image the following 1500W power amplifier circuit. The series of High Power Amplifier 1500W With Transistor Click Image to view larger In the above series of power amplifer 1500W is equipped ...
Read more

TA8210AH Stereo Car Power Amplifier

By -
IC TA8210AH By using this you can apply a series of audio power amplifier is the car audio system. In general, all the speakers in the car using a subwoofer speaker, and woofer. Because the car is not big room so the sound is being required is not too high. Audio amplifier circuit can work at a minimum voltage 12-volt DC, if supplied under voltage 12-volt amplifier work will be less than the maximum. This amplifier output power up to 200W or 2 x 100W stereo with 8 ohm impedance. Part List : Resistor R1 =1K R2 =50K trim R3 =1K R4 =50K trim R5 =680R R6 =680R R7 =150K R8 =2R2 R9 =2R2 R10=2R2 R11=2R2 Capacitor C1 =1uF C2 =1uF C3 =47uF C4 =47uF C5 =100n/400V C6 =220uF C7 =220uF C8 =100n/400V C9 =100n/400V C10=100n/400V Intregated Circuit IC1=TA8210AH Connector X2-3=in R X2-2=gnd X2-1=in L X1-1,X1-2=Out R X1-3,X1-4=Out L
