1200W power amplifier with sanken

By -
This 1200W power amplifier with sanken using a booster 8 sets sanken , the buffer using transistor D400 and B560 as much 2 sets , and to use part of the driver transistor B546/A940 and D401/C2168. 1200W power amplifier with sanken have least 20 volts and the voltage to 70 volts maximum with three voltage is +,-,ground. 1200W power amplifier with sanken Power Output 2 X 600 Watt with 8 Ohm Impedance.
Circuit audio amplifier 600 Watt

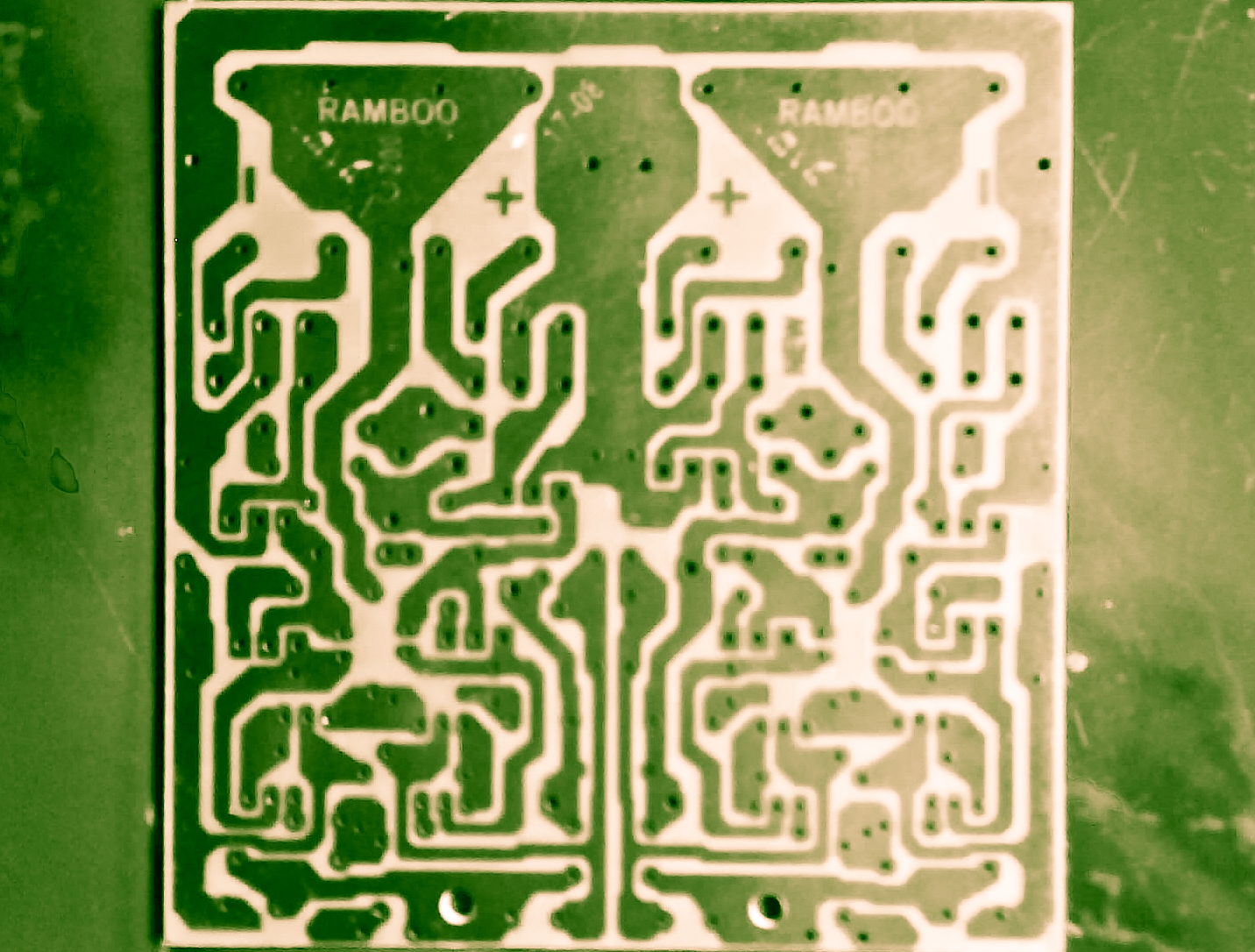

Circuit of PCB so from 2  X 600 watts (looked down)

Circuit of PCB (looked upon)

The above is a circuit of ready to operate , just stay put booster.
See also high power amplifier : 2800W High Power Amplifier
