Car audio amplifier with IC TA7203P

By -

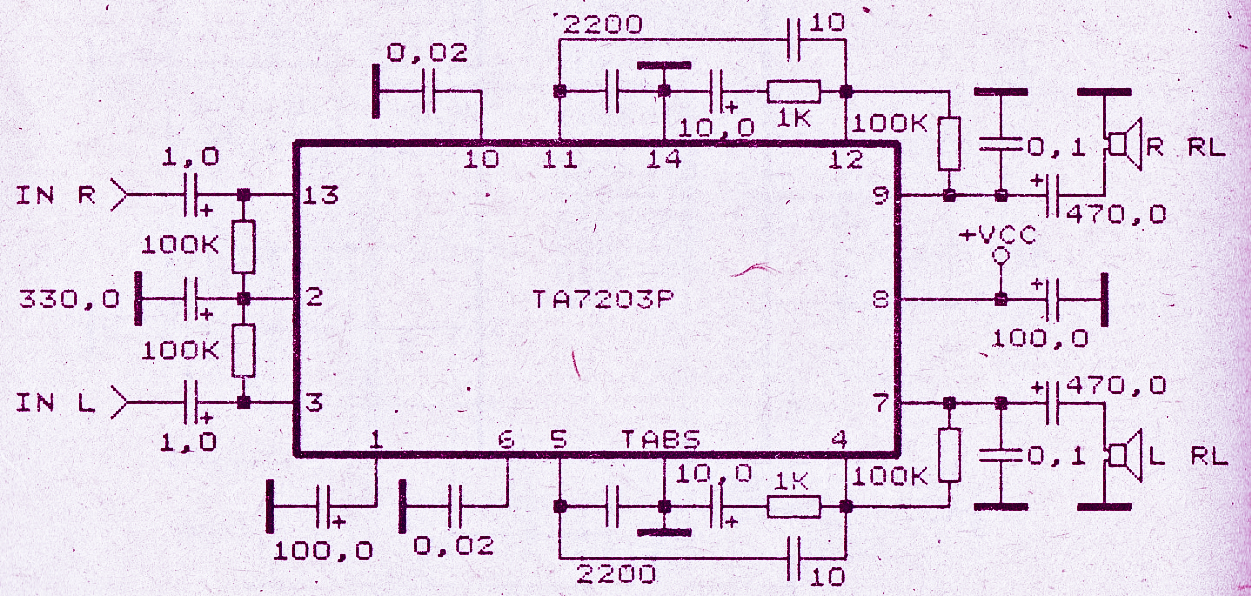

Stereo car power amplfier with TA7203P , is suitable for the room your car , your car it will build an increasingly crowded and felt like using high-class amplifiers and speakers. Simply using this circuit and some speaker subwoofer speakers you can enjoy it.
Technical information :
Max voltage = 20 Volt
Min voltage = 8 Volt
Max output  = 2 x 40 Watt
RL               = 8 Ohm
